Drawing packages
Structural
Drawing package
Miscellaneous
Drawing package
Delegated design
Design package
Delivered in the formats your shop needs
Every package is modeled in SDS/2 and exported ready for fabrication and the erection.
What you get, at a glance
Deliverables & formats

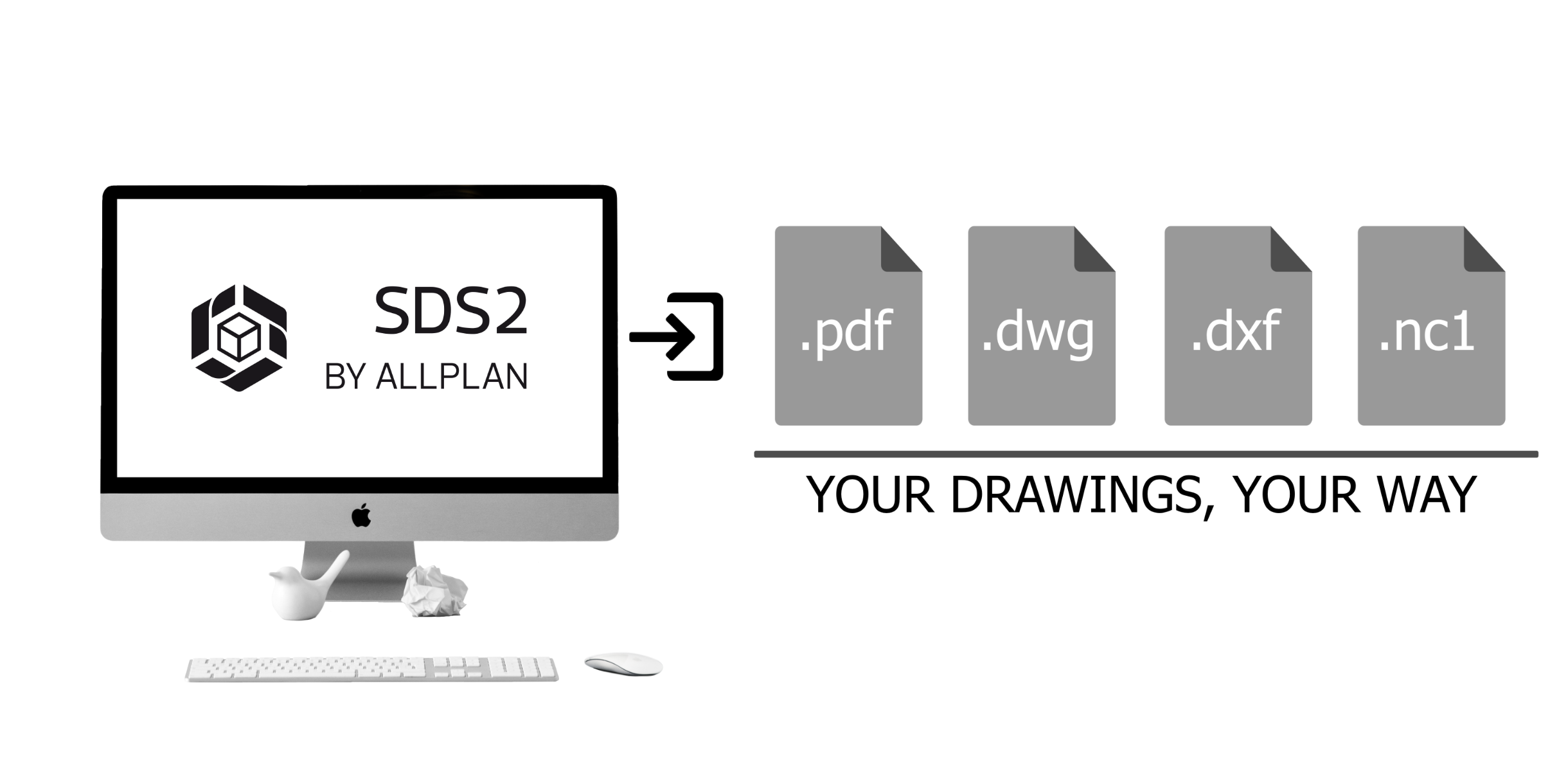

Shop & field drawings, BIM reports, and files that fit your shop — .nc1, .dxf, .dwg, .pdf, and BIM/IFC.
A clear process
RFQ to fabrication-ready in four tracked steps, with markups and revisions turned around fast.
Turnaround & capacity
Commercial, industrial, and miscellaneous steel. Lead times set by scope and confirmed at quote.
Quality & coordination
Model-based checking and optional PE-sealed connection design mean fewer surprises in the shop.
Two decades of structural steel, detailed right
Every structural and miscellaneous package is modeled in SDS/2 — a premium detailing suite — and our delegated-design work is verified and PE-sealed for the project's jurisdiction. From shopping centers to industrial platforms, we deliver quality drawings your shop can trust.
Ready to price your project?
Send us your drawings and we'll turn around a detailing proposal.
